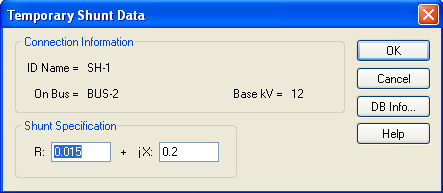

Figure 1: Temporary Shunt Data Dialog Box
Figure 1: Temporary Shunt Data Dialog Box
| Options | Description |
|---|---|
| R+jX |
Shunt data is entered as R+jX ohms. Standard shunt reactor data is entered using positive impedances, although negative numbers can also be entered. |
Tip: Click DB Info to view all of the item's database information.
