You are here: Printing and Plotting > Free-format Reports

Printing Text Reports

If you select to print when a text report window is active, the Print Text Report dialog box is displayed.

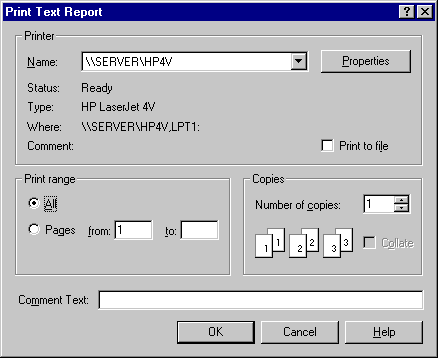

Figure 1: Print Text Report Dialog Box

Option Description
Properties

Click to change printer characteristics.
Print to file

Click to send the printout to a file instead of a printer.
Print Range

Select which pages of the report you want to print.
Copies

Click the number of copies to print.
Comment Text

When you print a report, it is often useful to include a brief description. This text is placed in the header of every page. For example, the comment might say "30-cycle results after opening breaker between BUS-15 and TX-22."

Free-format Reports

Database reports use "Free" format. Since they are not constrained to fixed columns of data, they can make use of the entire page width. If you select a smaller report font in the Fonts tab of the Options dialog box, you see more database data in fewer pages. See Fonts Tab for more information.

More Information

Printing and Plotting
