EasyPower button and then click Properties. To set the properties of a subsystem template, select the subsystem window, click the EasyPower button and then click Properties.
Specify the details for the subsystem in the Summary tab.
Figure 1: File Properties - Sumary Tab
Select the Category, Block Type and Manufacturer from the available choices in the boxes, or type your own text to create new items. You can use these options to filter the list of subsystems when inserting new subsystems into a one-line.

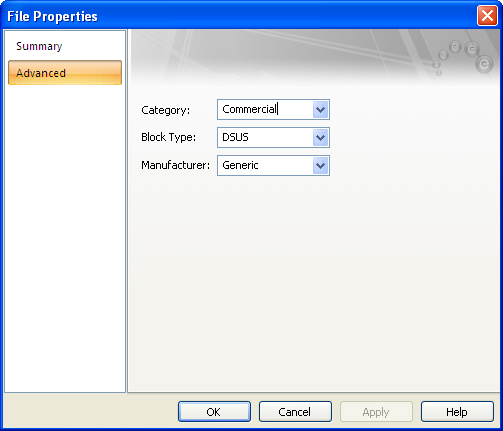

Figure 2: Setting Properties of Subsystem Template
