Tutorial - Power Flow Analysis

In this tutorial, you will be shown how to use several of EasyPower’s power flow analysis features. EasyPower uses the most robust and accurate algorithm ever developed: the Current Injection Method. The program also uses the latest in sparsity algorithm techniques to find the steady-state power flow conditions of an operating power system.

Power Flow Focus

To run power flow analysis:

1. Open the Simple.dez file in your Samples directory. Click Maximize in the one-line window to fill the session window with the one-line.
2. Click Power Flow in the ribbon to open the Power Flow focus. The Power Flow ribbon contains buttons that are used in power flow calculations.

Running Power Flow Analysis

1. Click Solve. EasyPower displays the power flow analysis of this small system. The megavar flows are shown inside parentheses and the megawatt flows are not in parentheses. The per-unit voltages and power angles of each bus are displayed at a forty-five degree angle (see figure below).




   Figure 1: Power Flow Analysis

The Overloads button is selected by default. Equipment items that are overloaded are highlighted red. Since no equipment in Simple.dez is overloaded, nothing is highlighted.

Note: EasyPower also highlights items that are within 10% of overload. This overload threshold can be adjusted in the PF Options dialog box.

2. Click Losses. The kW and kVAR losses in the transformer and cable are displayed (see figure below).



Figure 2: Power Flow With Losses Displayed

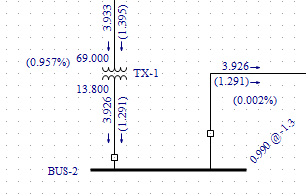

3. Click Voltage Drop. The voltage drop percentages across the transformer and cable are displayed (see figure below).



Figure 3: Power Flow With Percent Voltage Drops Displayed

Impact Motor Starting

After running power flow, the effect of one or more motors starting in your system can be analyzed. EasyPower computes the system impact of a starting motor at the time when the motor acts as a locked rotor.

1. Double-click on the motor. A Temporary Motor Data dialog similar to the one shown in the figure below is displayed.




   Figure 4: Temporary Motor Data Dialog Box

2. Change the Scaling Factor to 0%. This indicates that the motor is not currently running.
3. Select the Start Motor check box.
4. Type 5000 into the Motor Hp field.
5. Click OK.
6. Click Solve. This establishes your base case power flow before your motor starts. Notice the motor is drawing no power.
7. Click Solve Motor. The motor starting results display on your one line.

   Notice the buses turn red. Their bus voltages are below the “Bus Undervoltage Threshold.” (The “Bus Undervoltage Threshold” defaults to within 5% of unity. This can be adjusted in the Tools > Power Flow Options dialog box on the Control tab.) In both power flow and motor starting analysis, you can quickly spot voltage problems in large systems by looking for red buses.




   Figure 5: Motor Starting Analysis

Temporarily Changing Equipment Data

For fast contingency studying and what-if checking, you can run power flows after making temporary changes to the equipment data. All modifications made to equipment data while in the Power Flow focus are temporary. The changes do not affect verified data entered in Database Edit focus. Generators, utilities, transformers, motors, loads, capacitors, and shunts can all be temporarily edited.

1. Double-click on the motor again.
2. Clear the Start Motor check box, change the Scaling Factor to 120%, and then click OK.
3. Click Solve.



Figure 6: Motor With 120% Scaling Factor

Notice that the 120% motor load shown in is greater than the 100% motor load shown. Changing the Scaling Factor of a motor lets you to test different loading scenarios without changing the actual motor specifications.

Note: You can quickly scale multiple motors and loads by clicking Change Scaling Factor from the ribbon. The changes are applied to the motors and loads on your one-line that are selected green. This provides a fast and easy way to check peak loading conditions, light loading conditions, future additions, and other factors prevalent to a power system.

Display Options

Click PF Options in the ribbon and then select the One-line Output tab.

Observe the different one-line options available.

• The branch flows on the one-line include MW and MVAR, kVA and Power Factor, Current in Amps, and so on.
• The bus voltages display either Per unit, kV(LL), or V(LL) units.
• Units are displayed on the one-line by selecting the Show Units check box.

Text Reports

1. While still viewing the Power Flow Options, select Text Output. A dialog box similar to the one shown below is displayed.
2. Select the Create Detail Report check box, and then select IEEE/WSCC Format.
3. Select the System Summary check box.
4. Click OK.
5. Click Solve.




   Figure 7: Power Flow Text Output Dialog Box

6. Two power flow text report windows are created. You can view these reports by selecting either the Power Flow Summary or Power Flow Detail report from the Window button.

Tip: You can also double-click on the window icons created in the lower left corner.

Conclusion

This has been a brief overview of EasyPower’s power flow program. Features such as LTCs, generator voltage control, motor group modeling, and many others are also available. The EasyPowerUser Manual and the Help system cover these power flow features in greater depth.
