Differences Between Spreadsheets

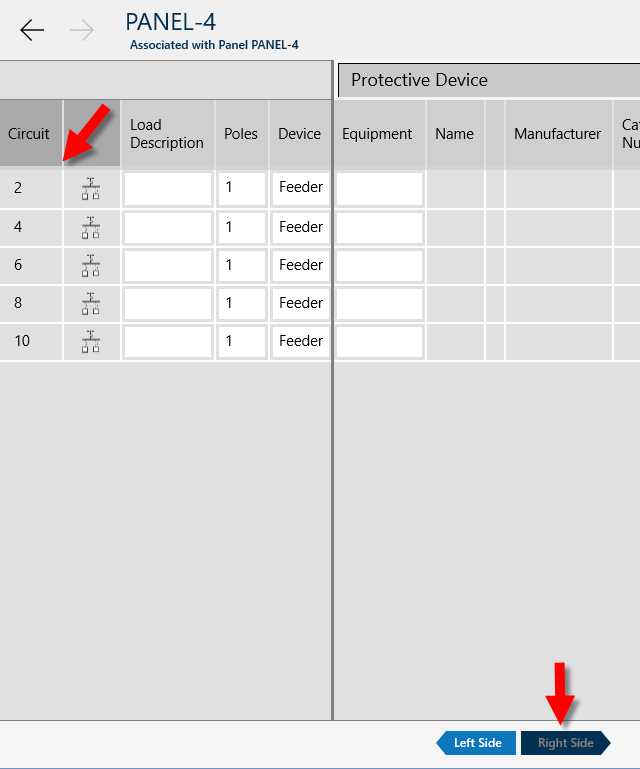

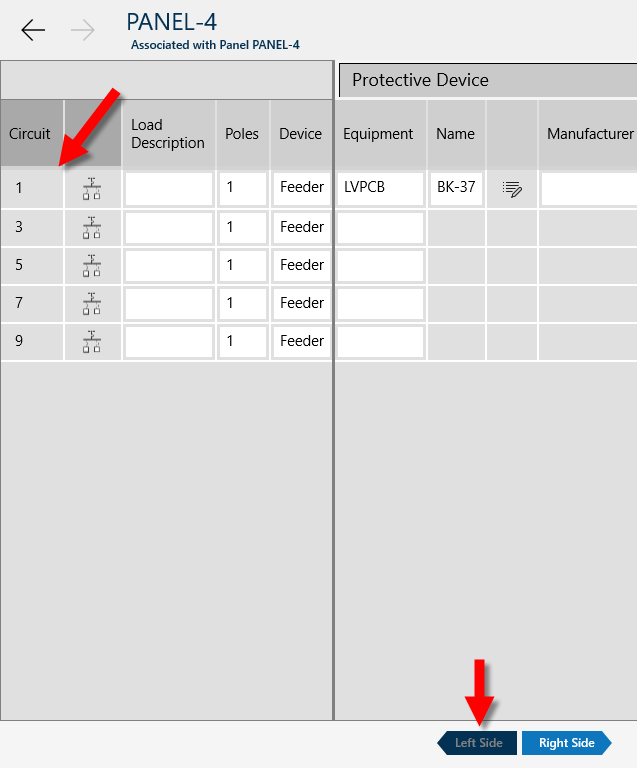

There is one primary difference between panel spreadsheets and the other spreadsheet types. A panel spreadsheet has two sides to represent the left and right circuits. In a panel spreadsheet, the left side displays the odd-numbered circuits, and the right side displays the even numbered circuits.

Other spreadsheets display all the sections on one page.

There are additional minor differences to the spreadsheets, such as different columns that appear in the Spreadsheet Section area depending on the type of spreadsheet being created. For example, panel spreadsheets have a column for Poles, and you can also specify an incoming main.

Bus duct spreadsheets include columns for the Plug Device and Plug Spacing.



---
