Changing the Bus Type

If you need to change the type of a bus after you create it, you can do so through the Bus Settings.

To change the bus type:

1. Select the bus.

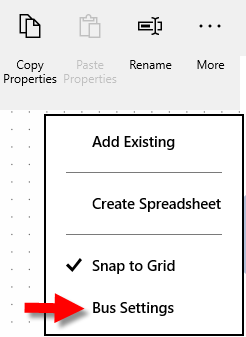

2. Tap More.
3. Tap Bus Settings.

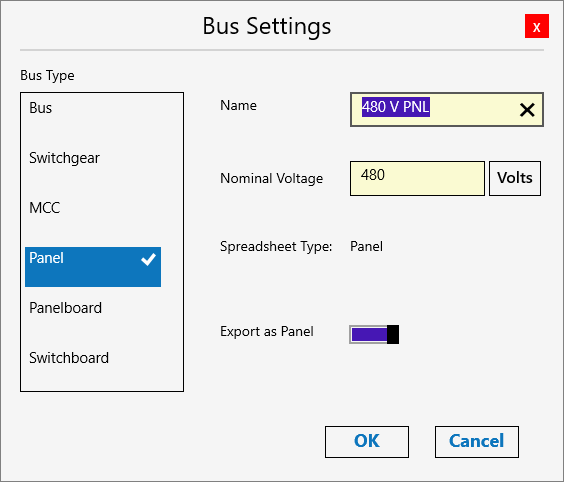

4. Under Bus Type, select a different type of bus.
5. For MCCs and panels, confirm the Export as option. This affects how the MCCs and panels appear when they are imported into EasyPower.

Note: This option is available only if the MCC or panel has a corresponding spreadsheet. If there is no spreadsheet, the MCC or panel is exported as a bus.

6. Tap OK.

The bus type appears below the bus name in the Properties tab or before the name on the bus Properties page.
