Importing Data to Individual Components

There are two ways to import reliability data to individual components:

  • On the Reliability tab in the individual data dialog boxes. See Database Technical Reference for more information.

    • On the Reliability tab, the Import button is highlighted.

    Figure 1: Importing in the Reliability Tab

  • In the Database Reliability View. See Reliability Database View for more information.

    • In the Database Reliability View, the Import button is highlighted.

    Figure 2: Importing in the Reliability Database View

After you click Import, you are given the option to select the library, category, and class. EasyPower attempts to make a best fit for the category and class based on the equipment selected. Make your selections, and then click Import.

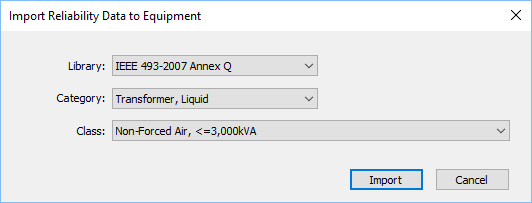

The Import Reliability Data to Equipment dialog box includes options to select the Library, Category, and Class.

Figure 3: Import Reliability Data to Equipment Dialog Box

In the individual equipment data dialog boxes, information about the import is shown.

On the Reliability tab, information about the import is shown.

Figure 4: The Reliability Tab Displays Import Information

Note that if you have manually entered values to the individual components, this import overwrites the entered values.

The Reliability Database View is shown.

Figure 5: Reliability Database View
