Schedule Templates
The schedules can be customized through templates. The schedule templates are text files with XML language you can edit with Notepad or a similar text editor. The file name extensions for schedule templates are as follows:
- MCC: *.ezmcc
- Panel: *.ezpnl
- Panelboard: *.ezpbd
- Switchgear, switchboard: *.ezswg
The default schedule templates are stored based on settings in Tools > Options > File Locations. You can choose the default schedule you want to use here.
Figure 1: Options Dialog Box—Default Templates
There are separate schedules for an MCC, panel, panelboard, or switchgear. Note that buses can also have schedules associated with them based on the bus type. The bus type is set on the Specifications tab in the Bus Data dialog box.

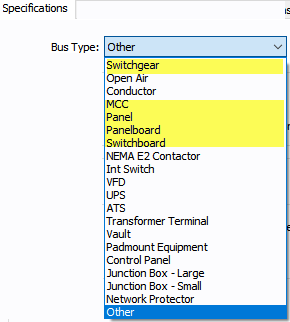

Figure 2: Bus Type Setting on the Specifications Tab of a Bus
The bus types that have schedules available are switchgear, MCC, panel, panelboard, and switchboard. When these bus types are selected on a bus, EasyPower uses the schedule templates shown below.
|
Bus Type |
|
|---|---|
|
Switchgear |
Switchgear |
|
Switchboard |
Switchgear |
|
Panelboard |
Panelboard |
|
MCC |
Switchgear |
|
Panel |
Switchgear |
